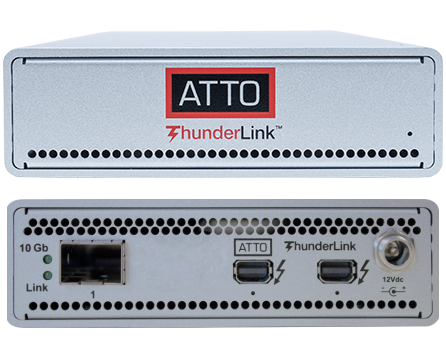

ATTO ThunderLink NS 2101
20Gb/s Thunderbolt 2 (2-port) to 10GbE (1-Port) Adapter (includes SFPs)
Get a Quote!
Get a Quote!
Click here to jump to more pricing!
Overview:
The ATTO ThunderLink NS 2101 acts as an external Thunderbolt 2 to 10GbE adapter, connecting Thunderbolt enabled all-in-one systems and laptops to 10Gb/s Ethernet networks and storage devices. ThunderLink 10GbE, with support for link aggregation and failover, offers redundancy and high availability for critical network applications. With 10Gb/s data transfer rates and multiple offloads (TCP, IPv4, UDP), Ethernet ThunderLinks are the premier connectivity choice for bandwidth-intensive applications such as data back-up and restoration, clustered computing, IP content delivery, medical imaging, and video rendering. With multi-core processors driving the need for higher bandwidth, ThunderLink 10GbE delivers superior throughput to meet that need.
With a low profile form factor, and Thunderbolt 2 connectivity, ATTO's optical 10GbE ThunderLink adapter provides the most flexible and scalable connectivity for today's high bandwidth content creation environments. By leveraging support for software iSCSI initiators, including ATTO Xtend SAN, ThunderLink 10GbE can support both local and storage area networks.
ThunderLink 10GbE offers Windows and Mac certified drivers, providing a single connectivity solution for customers with multiple operating system environments.
All ATTO Thunderbolt product utilize Advanced Data Streaming (ADS) Technology which maximizes CPU processes to deliver smooth and reliable data transfers and the highest consistent performance as well as our easy to use ConfigTool, an intuitive GUI, which enables management, monitoring and configuration.
Technical Features
- Single 10GbE port
- Supports 4K video file transfer and display simultaneously with dual 20Gb/s Thunderbolt 2
- Supports ATTO Xtend SAN iSCSI initiator
- Daisy chain up to five additional thunderbolt technology-enabled devices
- Backwards compatible with 10Gb/s Thunderbolt devices
- Exclusive Advanced Data Streaming (ADS) technology
- Minimized interrupts for low latency
- TCP, UDP and IPv4 checksum offloading and Tx/TCP segmentation offloading
- Industry's lowest power consumption
- Three year standard product warranty
- RoHS Compliant
Industry Proven Technology
ATTO Technology has 30 years of experience developing and delivering reliable storage connectivity solutions for customers. ATTO ThunderLink Ethernet adapters now provide creative professional using Thunderbolt enabled hosts, cost effective access to storage not previously available using FireWire or USB. The integrated family of ThunderLink adapters boasts an extensive list of customer design wins and certifications with respected industry partners.
Flexible Connectivity Solutions
ATTO 10GbE adapters provide the most flexible and scalable connectivity for today's high bandwidth content creation environments. By leveraging support for software iSCSI initiators, including ATTO Xtend SAN, ThunderLink 10GbE adapters can support both local and storage networks. ThunderLink 10GbE adapters offer driver support for Windows and macOS, VMware, providing a single connectivity solution for customers with heterogeneous operating system environments.
Performance Engineered
With 10Gb data transfer rates and multiple offloads (TCP, IPv4, UDP), ATTO Ethernet adapters are the premier connectivity choice for bandwidth-intensive applications such as data back-up and restoration, IP content delivery, medical imaging, and video rendering. With mult-core processors driving the need for higher bandwidth, ThunderLink 10GbE adapters deliver superior throughput to meet that need.
Advanced Management Tools
ThunderLink 10GbE adapters provide a common foundation for both Ehternet and storage networks. The ThunderLink leverages standard OS management and monitoring tools to dramatically reduce the cost and complexity of a data center's administration and infrastructure.
Applications
ThunderLink 10GbE adapter solutions allow the unparalleled performance of 10GbE to meet the performance and economic needs of today's growing data centers. The ThunderLink is ideal for applications that require low latency, high bandwidth data transfers, such as data back-up and restoration, video-on-demand and video streaming, medical imaging, and clustered databases.
Advanced Data Streaming (ADS)
Latency-management technology that controls the acceleration of data transfers to move large amounts of data faster and more efficiently.
Design:
Purpose-built with your design needs in mind
Meet demands for increased portability, decreased footprint and noise-sensitive environments with a low profile, cool, ultra-quiet device. ThunderLink adapters are simple to stack, easy to install and are designed to integrate seamlessly into existing infrastructures. The ability to hot-plug and full support of daisy-chaining allows you to reconfigure on-the-fly and empowers scalability as workgroups grow.
Spend less time managing equipment and more time creating
Trust your units are powered, ready-to-go and have uninterrupted power with locking power supplies. Now shipping with every Thunderbolt adapter, Kensington Security Slots provide a simple solution for studios, offices and educational facilities, allowing units to be easily secured to a fixed location.
Performance:
It's time to watch your throughput grow
Finally combat compressed schedules and allow for more time creating high-quality deliverables by optimizing performance, up to 2750MB/s for Thunderbolt 3. Smooth and reliable data delivery via ATTO Advanced Data Streaming (ADS) technology allows you to maintain the highest consistent performance while working with HD, 2K, 4K and higher formats.
Interoperability:
Build out a workflow the way you need it
Expand your connectivity choices with the widest portfolio of Thunderbolt adapters across Fibre Channel, Ethernet and SAS and 4X more interoperable components than the closest competitors. Any needed optics (SFP+, QSFP+) are already included and rigorously tested to ensure compatability and data integrity. Mac and Windows Thunderbolt certification enables collaborative workflows and the only Thunderbolt adapter certified with VMware ESXi allows deployments of a one-of-a-kind solution for test and development environments.
Thunderbolt Solutions have never been easier
Improve overall workflow efficiencies using ATTO MultiPath Director drivers for Fibre Channel by providing uninterrupted and consistent data by enabling load balancing and failover. ATTO ConfigTool provides an easy to use, yet powerful GUI for customizing, managing and optimizing your products. Backed by our extensive history and expertise in connectivity solutions, if any issues do arise, we have an on-site support team ready to diagnose technical issues and resolve them in a timely manner.
Specifications:
 |
 |
|
| ATTO ThunderLink | TLNS-2101 | TLNS-2102 |
|---|---|---|
| Transfer Rate | 20Gb/s | 20Gb/s |
| Input Connectors | (2) 20Gb/s Thunderbolt | (2) 20Gb/s Thunderbolt |
| Output Connectors | (1) 10GbE Ethernet | (1) 10GbE Ethernet |
| Connector Type | Thunderbolt 2/SFP+ LC | Thunderbolt 2/SFP+ LC |
| Included SFPs/QSFPs | 1 QSFP+ | 2 QSFP+ |
| Form Factor | Desktop | |
| General Features |
|
|
| Advanced Software Features |
|
|
| User Benefits |
|
|
| Management Tools |
|
|
| External Connectivity |
|
|
| Network Standards |
|
|
| Operating System Support |
|
|
| Compliance |
|
|
| Dimensions | 8.66"(D) x 4.07"(W) x 1.20"(H) | |
| Power Adapter |
|
|
| Hardware Operating Temperature |
|
|
| Storage Operating Temperature |
|
|
| Warranty | Three-year standard product warranty | |
| Complementary Products |
|
|
Video:
The ATTO Difference - Advanced Data Streaming
Latency management technology is built into ATTO host bus adapters (HBAs) and RAID hardware. Advanced Data Streaming manages latency by providing controlled acceleration for smooth data streaming to maintain the highest consistent performance. ADS ensures best-in-industry data transfers for high-bandwidth applications.
ATTO ThunderRack Rackmount Shelf:
Seamless Rackmount Solutions
Looking for a way to mount and organize Thunderbolt ThunderLink Adapters?
ThunderRack shelving enclosure gives the ability to easily rack units, whether in an on-set cart or standard rack in the data center. Now you can seamlessly integrate ThunderLink adapters into existing workspaces and keep units safe and secure all while freeing up desktop space.
Specifications
- Fits up to four ATTO ThunderLink Adapters
- Slim 1U form-factor
- Fits traditional 19" rack environment
- Rack 21" depth , extend 32" with included L-Bracket or optional rail kit
- Note: Cabinet depth must be 26" or higher to use rail kit
- Easily manage power supplies
- Simple access to single-sided Thunderbolt and protocol ports
- Designed for optimal airflow
- Operating temperature recommendation is 0 - 30C for all models
Documentation:
Download the ATTO ThunderLink NS 2101 Datasheet (.PDF)
