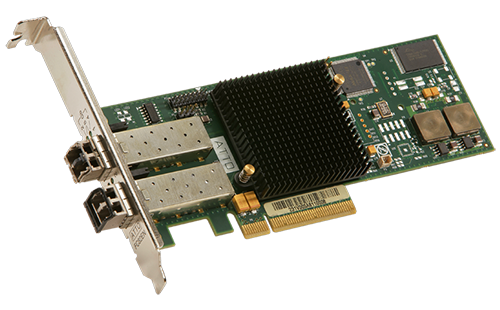

ATTO Celerity FC-82EN
Dual-Channel 8Gb/s Fibre Channel PCIe 2.0 Host Bus Adapter (includes SFP)
Get a Quote!
Click here to jump to more pricing!
Overview:
The ATTO Celerity FC-82E provides an advanced storage connectivity solution with high performance, intelligence and scalability. Celerity FC-82E 8Gb/s quad-channel HBAs deliver up to 1600 MB/s in a single PCIe slot solution, allowing original equipment manufacturers and system integrators to design state-of-the-art data infrastructures. The FC-82E is well-suited for the needs of Linux and Windows platforms operating in high performance computing, virtualization, and other high IOP environments typically found in enterprise data centers.
Meeting tomorrow's connectivity needs today, Celerity Fibre Channel Host Bus Adapters (HBAs) increase overall Fibre Channel system performance and drive intelligence all the way to the edge of the SAN utilizing ATTO's Advanced Data Streaming (ADS) Technology. Included with all ATTO HBAs are easy-to-use utilities ConfigTool and vConfigTool enabling management, monitoring and configuration which leverages an intuitive GUI.
ATTO Celerity HBAs offer MultiPath Director, a specialized multipathing driver incorporated into ATTO's Fibre Channel host bus adapters that enables Mac®, Windows or Linux workstations and/or servers to connect to enterprise-class storage.
ATTO Celerity 8Gb Fibre Channel Host Bus Adapters
ATTO Celerity Fibre Channel host bus adapters (HBAs) deliver the fastest data throughput (both MB/s and IOPs) available for today's most demanding storage environments, including physical and virtual datacenters, tape streaming and backup, rich content delivery, and server clustering.
Technical Features
- Single-, daul-, and quad-channel
- 1600 MB/s per channel throughput in full duplex mode
- Driver support for Windows, Linux, macOS, VMware and more
- Exclusive Advanced Data Streaming (ADS) technology
- ATTO ConfigTool for customized performance settings
- Proven interoperability with leading storage hardware and software vendors
- Complete SAN connectivity when combined with Fibre Channel switches
- Support for N_Port ID Virtualization and Virtual Fabric
- Target mode (Developer and SCST)
- Three-year standard product warranty
MultiPatch Director
- High-availability storage connectivity solution for media & entertainment
- Multiple paths to storage for improved data integrity and reliability
- High-performance shared storage for workgroups
- Load-balancing and failover in heterogeneous OS environments
Industry Proven Technology
ATTO Technology, Inc., has 30 years of experience developing and delivering reliable first-to-market Fibre Channel storage connectivity solutions to customers. Celerity host bus adapters (HBAs) are consistently the highest performing HBAs for video editing, digital audio, video on demand or database applications. The integrated family of Celerity 8Gb Fibre Channel HBAs boast an extensive list of customer design wins and certifications with respected industry partners.
Flexible Connectivity Solutions
With single-, dual-, and quad-channel configurations, Celerity Fibre Channel HBAs are an ideal solution for users looking to achieve the highest I/O and data throughput for advanced video and enterprise-class IT applications. Celerity 8Gb HBAs offer driver support for Windows, Linux, macOS, VMware and more, providing a single connectivity solution for customers with heterogeneous operating system environments.
Performance Engineered
Celerity HBAs are designed to provide fast, redundant and highly available connectivity to Fibre Channel storage and are engineered to manage latency for real-time applications. An ATTO exclusive, Advanced Data Streaming (ADS) technology provides controlled acceleration of data to deliver the highest consistent performance and reliable data transfers. ATTO pays close attention to detail in board design and signal integrity to minimize transmission errors and data corruption. Specialized Fibre Channel drivers with support for multiple OS platforms and OEM-specific solutions, such as target mode and multipathing, make ATTO the premier choice for high-performance Fibre Channel storage area network (SAN) connectivity.
Advanced Management Tools
The easy-to-use ATTO ConfigTool features an intuitive GUI that simplifies the installation, management and monitoring of the HBA. With advanced troubleshooting and performance tuning capabilities, Celerity HBAs provide users with sophisticated diagnostics and the flexibility to control settings for specific applications.
Applications
Celerity Fibre Channel HBAs deliver high-performance and reliable connectivity solutions for the most demanding storage environments, including physical and virtual data centers, tape streaming and backup, rich content delivery, server clustering and complex databases. Celerity HBAs enable users to achieve the ultimate in I/O performance for real-time and transactional applications.
Advanced Data Streaming (ADS)
Latency-management technology that controls the acceleration of data transfers to move large amounts of data faster and more efficiently.
Design:
Powering the modern data center
Celerity HBAs unleash the performance of all-flash data centers with the support of NVMe fabric technology for demanding workloads that require extreme performance, ultra-low latency, and storage persistency to shared storage resources.
Engineered for performance
Celerity HBAs have an advantage over the leading competitor embedded directly in the processor's architecture. The ATTO controller features multiple cores, providing full IOPS performance to a single port in "active standby" mode on a dual-port HBA. If a port, cable or SFP fails a port on the ATTO adapter can support up to 2.5X as many IOPS as the competitive HBA. ATTO Celerity HBAs allow sustained maximum performance, enabling users to continue to meet service level agreements.
Flexible configuration options
Available in low-profile single-, dual-, and quad-port versions, ATTO Celerity HBAs are backward compatible, reducing the complexity of deploying and managing the SAN, and take full advantage of advancements for reliability and forward error correction to improve network performance and resiliency.
Connect your workstation to enterprise storage
ATTO Celerity HBAs, featuring Multipath Director technology, are the only solution that allows direct connectivity to enterprise storage not just for servers, but also Windows, Linux, and macOS workstations. They provide load balancing and path failover protection to improve overall Fibre Channel SAN efficiency with consistent uninterrupted access to your data.
Performance:
Optimize performance to power real-time decision-making
Move large volumes of data with fast, predicable and deterministic response time by optimizing performance up to 3200MB/s per channel. Built into every Celerity HBA, ATTO Advanced Data Streaming (ADS™) technology manages latency by providing controlled acceleration for smooth data streaming and allows you to maintain the highest consistent performance in data intensive environments.
Continuous availability across your network
Whether you're looking for a disaster recovery solution, downtime avoidance or a higher level of availability, Celerity HBAs make it possible to have longer distances between your servers and storage. Featuring 5X more buffer credits than the competition, Celerity HBAs support more data in-flight allowing you to extend your connection to storage up to 10 km without degrading throughput.
Double your bandwidth
Celerity Gen 6 HBAs deliver 2x greater bandwidth when compared to previous generations. They are purpose-built to address the performance, reliability and scalability requirements of hyper-scale virtualization, SSD technology, and new data architectures.
Accelerating tomorrow's technologies today
From artificial intelligence and big data analytics to augmented and virtual reality, ATTO Celerity HBAs, in partnership with NVIDIA, are accelerating GPU-based data and graphic-intensive applications while enhancing overall performance.
Interoperability:
High compatibility and broad interoperability
We are constantly testing and certifying our products with third-party vendors, from OS and servers to switches and storage, to ensure the widest range of compatibility. ATTO works closely with industry leaders to ensure certified interoperability allowing you to deploy robust storage area network (SAN) infrastructures with proven best practices.
Specifications:
 |
 |
 |
|
| ATTO Celerity | CTFC-81EN | CTFC-82EN | CTFC-84EN |
|---|---|---|---|
| Ports | Single | Dual | Quad |
| Bus Characteristics | x8 PCIe 2.0 | x8 PCIe 2.0 | x8 PCIe 2.0 |
| Form Factor | Low Profile | Low Profile | Full Height |
| Max Transfer Rate | 800 MB/s | 1600 MB/s | 3200 MB/s |
| Key Features |
|
||
| User Benefits |
|
||
| Management Tools | ATTO ConfigTool (w/GUI) BIOS-base management and configuration utility | ||
| Bus Specifications |
|
||
| External Connectivity |
|
||
| Operating System Support |
|
||
| Agency Approvals |
|
||
| Compliance |
|
||
| Dimensions | Length 6.600" Height 2.731" |
Length 6.600" Height 2.731" |
Length 6.525" Height 3.987" |
| Hardware Operating Temperature |
|
||
| Storage Operating Temperature |
|
||
| Operating Power (Typical) | 5.3W | 5.9W | 7.8W |
| Airflow | 100 lf/m (min) recommended | ||
| Warranty | Three-year standard product warranty | ||
Video:
ATTO Technology Celerity Fibre Channel Host Bus Adapter
Responsible for moving valuable data, the host adapter is one of the most critical components in a Fibre Channel Storage Area Network (SAN). Why trust an integral part of the network fabric architecture to an 'average' adapter? ATTO Fibre Channel host adapters are highly-intelligent data movement engines that transfer information efficiently and flawlessly using ATTO's unique, industry-leading hardware and software architecture.
The ATTO Difference - Advanced Data Streaming
Latency management technology is built into ATTO host bus adapters (HBAs) and RAID hardware. Advanced Data Streaming manages latency by providing controlled acceleration for smooth data streaming to maintain the highest consistent performance. ADS ensures best-in-industry data transfers for high-bandwidth applications.
Documentation:
Download the ATTO Celerity 8Gb Fibre Channel HBAs Datasheet (.PDF)
Pricing Notes:
- Pricing and product availability subject to change without notice.
